Anchor Windlass Control Box

XMS91 Series Anchor Control Box

The anchor windlass control box is used to control electrical anchors and windlass AC motor’s starting, stopping, and rotating. This marine control box protects against short circuits, defaults, overloads and voltage loss.

Application Environment:
Ambient temperature: -25℃- 45℃
Inclination, Swing: ±22.5°
There are influences of shock, vibration, salt mist, fungus and humid air on the sea when the ship is in normal operation.
The anchor control box can be single speed, double speed or three-speed depending on the motor. A three-speed control box should be used with a main controller. The protection class of the box is IP22 or IP44/IP56 depending on customer requirements.

Type of anchor control box and motor:
Data sheet of JZ2–H single speed marine motor
Control box type Rated operational current (A) Controlled motor Note
Type Number of poles Rated power (KW) Rated current (A)
XMS91 -16A 16 JZ2-H-11 4 1.5 4.3 Conventional controller with remote control button box used to control clockwise and counterclockwise rotation.
JZ2-H-12 4 22 60
JZ2-H-13 4 3.5 8.9
JZ2-H-21 4 5 12
JZ2-H-21 6 3.5 10
JZ2-H-22 6 5 13.3
XMS91 -25A 25 JZ2-H-31 6 7.5 19.2
XMS91 -32A 32 JZ2-H-32 6 11 26.8
XMS91 -40A 40 JZ2-H-41 6 16 35
JZ2-H-41 8 11 28.9
Data sheet of JZ–H single speed marine motor
Control box type Rated operational current (A) Controlled motor Notes
Type Number of poles Rated power (KW) Rated current (A)
XMS91-16A 16 YZ-112S-H 4 1.5 4.3 Conventional controller with remote control button box used to control clockwise and counterclockwise rotation.
YZ-112M-H 4 2.2 6.0
YZ-112L-H 4 3.7 9.6
YZ-112S-H 6 1.1 3.5
YZ-112M-H 6 1.5 4.65
YZ-112L-H 6 22 6.6
YZ-132S-H 6 3.7 10.5
YZ-132M1-H 4 5.5 13.4
XMS91-25A 25 YZ-132M- H 6 5.5 15.3
YZ-132M2-H 4 7.5 18.5
YZ-160S-H 6 7.5 19.73
XMS91-32A 32 YZ-160L-H 6 11 26.8
XMS91-40A 40 YZ-180L-H 6 15 36
Data sheet of JZ2-H three-speed marine motor
Control box type Rated operational current (A) Controlled motor Matched master controller type
Type Number of poles Rated power (KW) Rated current (A)
XMS91-16/2 16 JZ2-H-22 4/12 3/1.2 6.8/7.2 LK911-117A
JZ2-H-23 4/12 4.3/1.7 9.5/10.1
JZ2-H-32 4/12 6/2.5 12.9/11.3
XMS91-25/2 25 JZ2-H-33 4/12 8.5/3.5 17.9/14.8
JZ2-H-32 4/16 6/1.7 -
JZ2-H-33 4/16 8.5/2.4 19.2/11.6
XMS91-40/2 40 JZ2-H-41 4/16 12/3.5 25.9/18.5
JZ2-H-42 4/16 18/5 37/23.8
Data sheet of JZ-H double-speed marine motor
Control box type Rated operational current (A) Controlled motor Matched master controller type
Type Number of poles Rated power (KW) Rated current (A)
XMS91 -16/2 16 YZ-112L-H 4/12 Z2/0.75 6.575.4 LK911 一 117A
YZ-132M-H 4/12 3/1.1 8-7/7-6
YZ-132L-H 4/12 4/1-5 10-3/9-1
XMS91 -25/2 25 YZ-160L-H 4/12 6.3/Z2 15.4/12
YZ-180L-H 4/12 8-5Z3-5 19.3/18
XMS91 -40/2 40 YZ-180L-H 4/16 11/3 25/16.6
YZ-200M-H 4/16 15/4 3Z8/24.1
XMS91 -63/2 63 YZ-200L-H 4/16 18-5/5-5 40.4/3Z6
Data sheet of JZ2-H three-speed marine motor
Control box type Rated operational current (A) Controlled motor Matched master controller type
Type Number of poles Rated power (KW) Rated current (A)
XMS91 -32/3 32 JZ2-H-41 4/8/16 7.5/7.5Z5 16.8/17.8/26 LK911 一 110A
XMS91 -40/3 40 JZ2-H-42 4/8/16 11/11/7 .5 23/25.3/38^
XMS91 -63/3 63 JZ2-H-51 4/8/16 16/16/11 33/35.2/49
XMS91 -100/3 100 JZ2-H-52 4/8/16 22/22/16 44/47.8/71
JZ2-H-61 4/8/16 30/30/22 60.5/69.5/96
XMS91 -160/3 100 JZ2-H-71 4/8/16 45/45/30 85.5/100/142
XMS91 -250/3 250 JZ2-H-72 4/8/16 60/60/45 114/135/196
XMS91 -400/3 400 JZ2-H-81 4/8/16 85/85/64 160/195/337
Data sheet of JZ-H three-speed marine motor
Control box type Rated operational current (A) Controlled motor Matched master controller type
Type Number of poles Rated power (KW) Rated current (A)
XMS91 -40/3 40 YZ-200S-H 4/8/16 9/9/42 21.4/24.7/37.2 LK911-110A
XMS91 "63/3 63 YZ-200L-H 4/8/16 12.5/1Z5/5.7 29.3/34.3/49.5
XMS91 -100/3 100 YZ-225S-H 4/8/16 16.8/16.8/8 38.9/46.2^7.6
YZ-225L-H 4/8/16 2Z5/22.5/10.6 51.5^0.3/85.6
YZ-250S-H 4/8/16 30/30/14.5 63.8/71.3/106.5
XMS91 -160/3 160 YZ-250M-H 4/8/16 42/42/20 86-3/95/11Z6
YZ-280S-H 4/8/16 66/66/27 114/120.6/147.5
XMS91 -250/3 250 YZ-280L-H 4/8/16 75/75/36 164/161.5/182
XMS91 -300/3 300 YZ-315S-H 4/8/16 100/100/48 198/209/303
XMS91 -400/3 400 YZ-315L-H 4/8/16 135/135/65 267/282/410

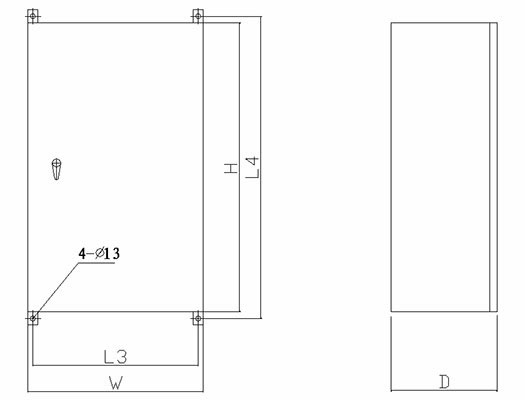

Overall and mounting dimension of anchor control box:
Type H W D L3 L4
XMS91 -25A -32A-16A 500 400 200 340 530
XMS91 -40A 600 500 200 440 630 IP44

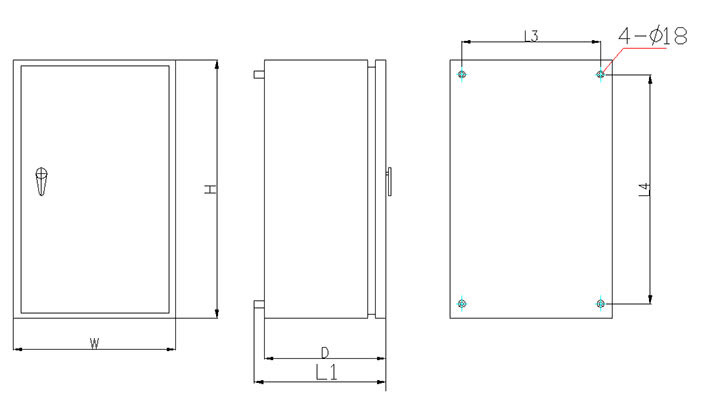

Type H W D LI L3 L4
XMS91 -16/2 -25/2 700 520 220 230 420 600 IP22
XMS91 -40/2 800 520 220 230 420 700
XMS91 -63/2 1000 550 280 290 450 900

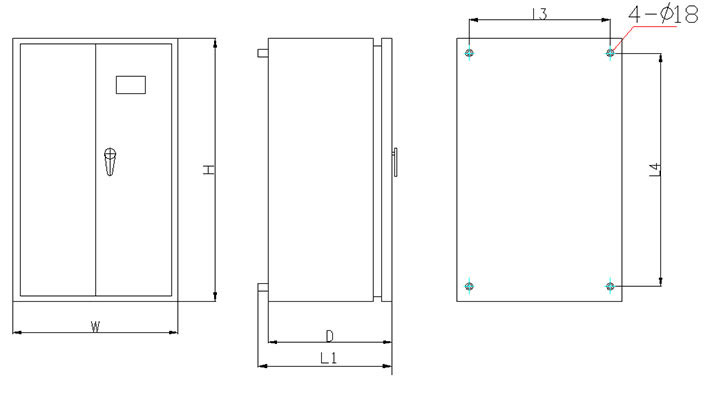

Type H W D L1 L3 L4
XMS91 - 32/3 900 520 220 230 420 800 IP22
XMS91 -40/3 -63/3 1000 550 280 290 450 900
XMS91-100/3 1200 700 280 290 600 1100 IP22
XMS91-160/3 1200 700 280 290 600 1100
XMS91-250/3 1400 850 320 330 750 1300

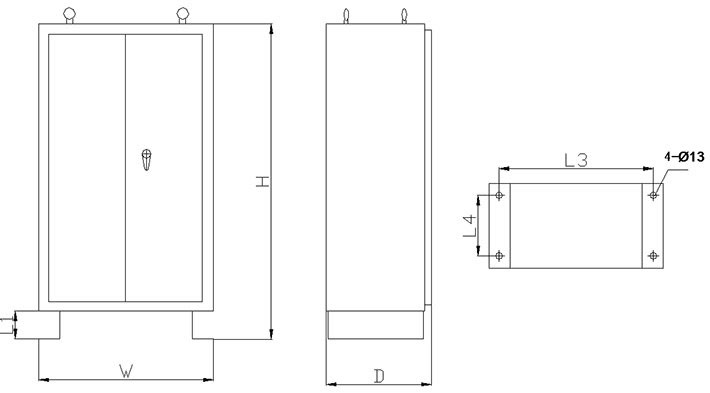

Type H W D LI L3 L4
XMS91 -300/3 1800 950 350 160 890 250 IP44
XMS91 -400/3 1800 950 350 160 890 250
BXMS91 Series Explosion-Proof Marine Anchor Control Box

The BXMS91 series of explosion-proof anchor control boxes are used in shipping machinery where hazardous or explosive materials are present. The anchor windlass control box is used to control electrical anchors and windlass AC motor’s starting, stopping, and rotating and protects against short circuits, defaults, overloads and voltage loss.

Application Environment:
Ambient temperature:-25℃-45℃
Inclination, Swing: ±22.5°
There are influences of shock, vibration, salt mist, fungus and humid air on the sea when the ship is in normal operation.
Explosive gas atmosphere hazardous location: 1 district, 2 district
Steam level of inflammable gas: ‖A,‖B
Temperature classification: T1-T4
Explosion proof class : Exd‖BT4
Protection class: IP56
The motor’s auxiliary features and parameters are the same as the regular anchor control box.

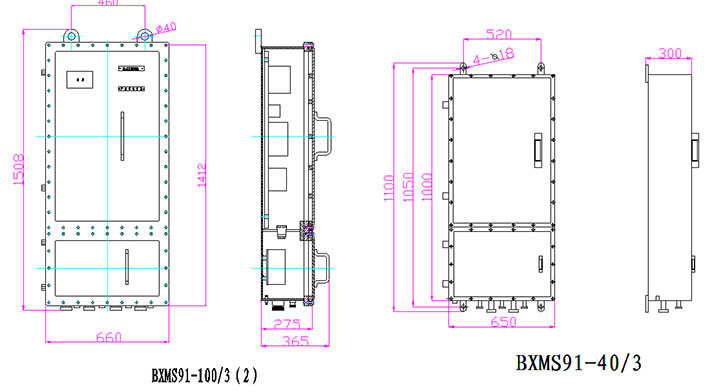

Overall and Mounting Dimensions:
