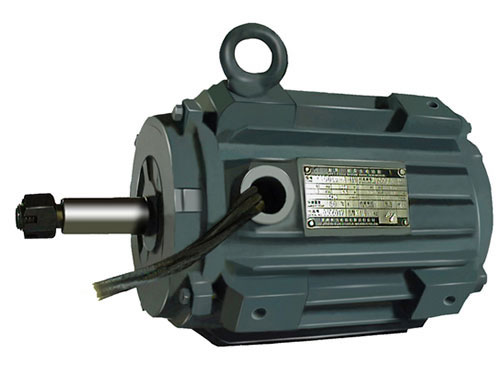

Three-Phase Induction Motor for Axial Ventilator, YT2-H Series

YT2-H Series Three Phase Marine Induction Motor For Ventilator
  • Introduction
  • Main Technical Data

The YT2-H series of three-phase induction motors for axial ventilators is designed for ventilators on board ships. The performance and parameters of this ventilator motors are the same as the Y-H series of induction motors except for mounting and overall dimensions.

Inquiry Form

Operating Conditions
Ambient Temperature: 0℃～+45℃
Altitude: 0m
Rated Frequency: 50Hz or 60Hz
Rated Voltage: 380V or 440V
Connection: 3kW or less Y, more than 3kW △
Duty Type: continuous S1

Technical Data
Type Power kW Current A Rotation speed r/min Type Power kW Current A Rotation speed r/min
380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz
YT2-80M1-2-H 0.75 1.8 1.6 2820 3460 YT2-225M-4-H 45 84.0 73.4 1480 1780
YT2-80M2-2-H 1.1 2.6 2.2 2820 3460 YT2-250M-4-H 55 102.7 88.7 1480 1780
YT2-90S-2-H 1.5 3.5 3.1 2840 3470 YT2-280S-4-H 75 139.2 120.9 1480 1790
YT2-90L-2-H 2.2 4.9 4.3 2840 3470 YT2-280M-4-H 90 164.3 141.9 1480 1790
YT2-100L-2-H 3 6.2 5.4 2890 3470 YT2-90S-6-H 0.75 2.2 2.0 910 1130
YT2-112M-2-H 4 8.2 7.2 2890 3500 YT2-90L-6-H 1.1 3.2 2.9 910 1130
YT2-132S1-2-H 5.5 11.0 9.6 2900 3520 YT2-100L-6-H 1.5 4.0 3.5 950 1140
YT2-132S2-2-H 7.5 14.6 12.9 2900 3520 YT2-112M-6-H 2.2 5.8 5.2 940 1150
YT2-160M1-2-H 11 21.6 18.8 2930 3520 YT2-132S-6-H 3 7.2 6.4 960 1170
YT2-160M2-2-H 15 28.9 24.9 2930 3520 YT2-132M1-6-H 4 9.5 8.2 960 1170
YT2-160L-2-H 18.5 35.7 30.3 2930 3520 YT2-132M2-6-H 5.5 12.5 10.7 960 1170
YT2-180M-2-H 22 41.4 36.9 2940 3530 YT2-160M-6-H 7.5 17.1 14.8 970 1160
YT2-200L1-2-H 30 57.9 50.3 2960 3560 YT2-160L-6-H 11 25.0 21.8 970 1160
YT2-200L2-2-H 37 69.4 60.3 2960 3570 YT2-180L-6-H 15 33.0 29.3 970 1160
YT2-225M-2-H 45 85.9 76.3 2970 3580 YT2-200L1-6-H 18.5 37.6 32.7 980 1180
YT2250M-2-H 55 103.2 91.7 2970 3580 YT2-200L2-6-H 22 44.7 38.9 980 1180
YT2280S-2-H 75 139.2 120.9 2970 3580 YT2-225M-6-H 30 61.1 53.1 990 1190
YT2-280M-2-H 90 167.1 143.5 2970 3580 YT2-250M-6-H 37 71.0 61.3 980 1180
YT2-80M1-4-H 0.55 1.5 1.4 1390 1710 YT2-280S-6-H 45 86.4 75.5 980 1190
YT2-80M2-4-H 0.75 2.1 1.8 1390 1710 YT2-280M-6-H 55 103.2 89.7 980 1190
YT2-90S-4-H 1.1 2.7 2.4 1400 1710 YT2-132S-8-H 2.2 5.8 5.2 710 860
YT2-90L-4-H 1.5 3.6 3.2 1400 1710 YT2-132M-8-H 3 7.6 6.8 710 860
YT2-100L1-4-H 2.2 5.1 4.5 1450 1740 YT2-160M1-8-H 4 10.5 9.1 720 860
YT2-100L2-4-H 3 6.8 5.9 1450 1740 YT2-160M2-8-H 5.5 13.4 11.5 720 860
YT2-112M-4-H 4 8.9 7.7 1440 1750 YT2-160L-8-H 7.5 17.7 15.5 720 860
YT2-132S-4-H 5.5 11.7 10.0 1440 1750 YT2-180L-8-H 11 25.6 22.2 730 876
YT2-132M-4-H 7.5 15.4 13.2 1440 1750 YT2-200L-8-H 15 33.3 29.2 730 880
YT2-160M-4-H 11 22.8 19.5 1460 1750 YT2-225S-8-H 18.5 40.3 35.6 740 890
YT2-160L-4-H 15 30.5 26.3 1460 1750 YT2-225M-8-H 22 47.4 41.7 740 890
YT2-180M-4-H 18.5 35.9 30.9 1470 1760 YT2-250M-8-H 30 64.7 57.1 730 890
YT2-180L-4-H 22 42.2 36.9 1470 1760 YT2-280S-8-H 37 79.8 68.9 740 890
YT2-200L-4-H 30 57.3 49.8 1480 1780 YT2280M-8-H 45 94.8 80.8 740 890
YT2-225S-4-H 37 70.2 60.3 1480 1780
Mounting and Overall Dimensions
Frame size Mounting and overall dimensions
D1 b G E1 E2 L L1 C L2 F L4 B M H d M3 8-M2 S
80 19 6 15.5 40 62 270 50 50 100 240 16 82 M12 175 3.2 G3/4" M8 Length 20 24
90S 24 8 20 50 78 295 56 56 20 90 M16 190 4.2 M10 Length 20 28
90L 330 135 300 M12 Length 20
100L 28 24 60 92 365 55.5 55.5 155 340 24 102 M20 215 32
112M 375 60 60 160 330 122 255 34
132S 38 10 33 80 119 450 68 68 182 400 31 140 M30 290 6.2 G1" M16 Length 20 45
132M 490 220 450
160M 42 12 37 110 150 575 108 108 210 475 164 340 M16 Length 24
160L 620 254 630
180M 48 14 42.5 660 121 121 270 650 180 380 M16 Length 20
180L 700 310
200L 55 16 49 160 780 133 133 340 36 200 M36 420 G1 1/4 40
225S 60 18 53 850 162 162 350 800 225 470 M20 Length 20 45
225M
250M 65 58 140 140 865 180 172.5 340 - 239 M42 476 - G2 1/4 " M16 Length 24 50
280S 75 20 67.5 930 173 162 424 - 267 M52 540 - M16 Length 26 46
280M 980 475 - -
Note: All technical data is for reference only and may change depending on the specifications of your order. Please contact us with any questions.
